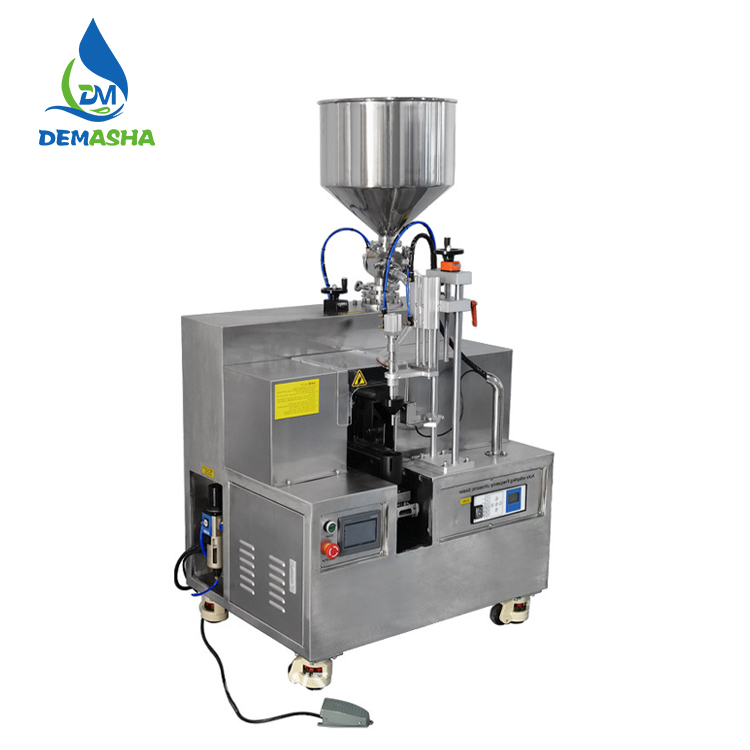

Ultrasonic Plastic Tube Semi Automatic Tube Filling Sealing Machine for Cosmetic Cream

- IN STOCK
Type
Filling &Ultrasonic Sealing Machine
Filling capacity
A:5-30ml B: 6-60ml C: 10-120ml D: 25-250ml
Sealing speed
8-12 pcs/min
Diameter of tube
10-50mm
Sealing height
50-220mm(customizable)
Frequency
20KHZ
Filling accuracy
±1%
Capacity of hopper
30L
Body material
304 stainless steel
Air pressure
0.5Mpa
Voltage
220V,50/60Hz,AC (110V is optional)
Power
2.6KW
Weight
180kgs
Size
L1000*780*1550mm
Optional hopper
Heating and stirring
Share Share on Facebook Share to Instagram Story
Type
Filling &Ultrasonic Sealing Machine
Filling capacity
A:5-30ml B: 6-60ml C: 10-120ml D: 25-250ml
Sealing speed
8-12 pcs/min
Diameter of tube
10-50mm
Sealing height
50-220mm(customizable)
Frequency
20KHZ
Filling accuracy
±1%
Capacity of hopper
30L
Body material
304 stainless steel
Air pressure
0.5Mpa
Voltage
220V,50/60Hz,AC (110V is optional)
Power
2.6KW
Weight
180kgs
Size
L1000*780*1550mm
Optional hopper
Heating and stirring

Touch Screen Panel
PLC is Coolmay touch screen control, easy to operate.The body is made of 304 stainless steel, corrosion resistance, acid and
alkali resistance.

Ultrasonic Box
Digital automatic ultrasonic automatic frequency tracking electric box.Increase power automatic compensation function.

Panasonic Sensor
Fast and accurate benchmarking.Automatic benchmarking, sealing, coding and edge trimming, convenient and quick operation.

Tube Holder And Ultrasonic Horn
Holder is durable and good.
Ultrasonic technology sealing and sealing effect is stable and lasting.

Cylinder is Taiwan AIRTAC.304:  Imported AirTAC Solenoid Valve Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube.

Adjusting the decompression oil-water separation gas source processor.

Air pump is provided by buyer.
