500 / 1000 / 1500 / 2000 LPH Pure Mineral Drinking Water RO System Reverse Osmosis Purifying Treatment Machine

SKU: DMS-RO-250LPH

- IN STOCK

Power	380v 50hz
Water conductivity	≤15
Raw water conductivity	5
Raw water conductivity	800
Main material	Glass fiber Reinforced plastic, upvc, 304
PH value of raw water	6
Effluent resistivity	0.006
Water quality requirement	Intermediate water, tap water, well water, groundwater, mountain spring water, soft water
Desalting rate	98%
Applicable industry	Factory, Production, campus
Scope of application	Tap water, deep well water, ground

Description:

RO water treatment equipments is generally adopted by pure water plant,mineral water plant,bottled water plant, beverage processing plant, etc. and used in pure water production line, beverage production line, fruit juice production line, yogurt production line, and more.

Reverse osmosis water purification is the removal of contaminants from untreated water to produce drinking water that is pure enough for its intended use, most commonly human consumption. Substances that are removed during the process of drinking water treatment include suspended solids, bacteria, algae, viruses, fungi, minerals such as iron, manganese
and sulphur, and man-made chemical pollutants including fertilisers.

Ultrapure water system

Ultrapure water system is a core ultrapure water device integrating ion exchange resins and electrochemical technology. It replaces traditional ion exchange mixed beds without chemical acid-base regeneration, enables continuous stable water production, and is widely used in electronics, pharmaceuticals, electric power, etc.

With RO-pretreated feed water, it enters the EDI module (fresh, concentrated, electrode water chambers separated by ion exchange membranes): resins in fresh chambers adsorb ions first, then external DC electric field desorbs and drives them to concentrated chambers; electrode chambers remove electrolytic impurities with little water, and resins regenerate online via the field. Finally, it produces ultrapure water (15-18.2 MΩ·cm resistivity) for efficient, eco-friendly deep desalination.

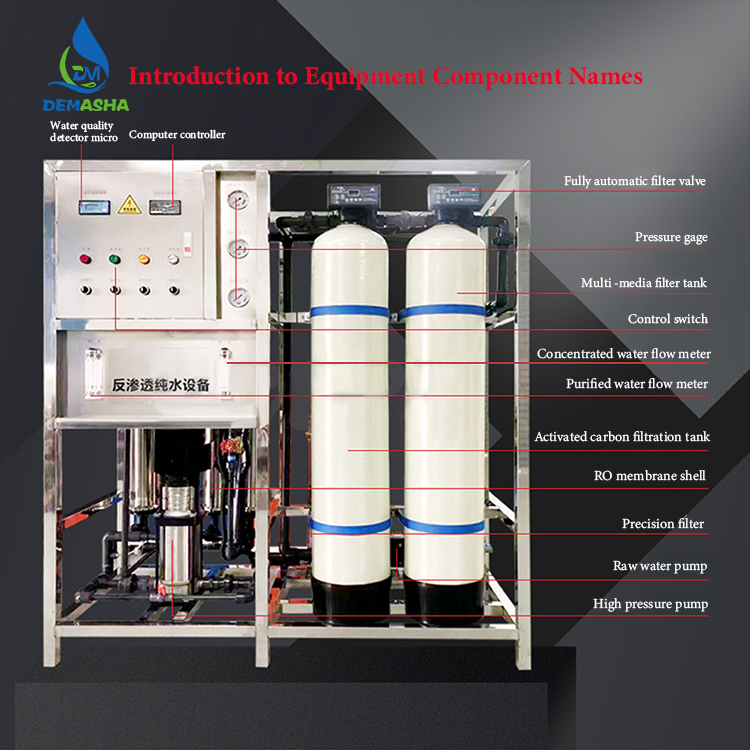

Functions of Main Devices:

1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the
impact of insufficient water, reduce the failure rate
2. Water pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Active Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane

7. High pressure pump: provide enough pressure for reverse osmosis system

8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.

9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure
enough for different application.
10. Ozone Generator:Four connections installed on the ozone generator: air inlet:/Ozone outlet/chilling water inlet/chilling
water outlet
11. UV Sterilizer:The products adopt a high-intensity,long-lived UV germicidal lamp,the device is reasonable, compact, and adopts
the structure of secondary disinfection,so health indicators completely according to the state standard.

Reverse osmosis equipment has a variety of configurations according to the customer’s use environment and specific requirements, please inform the customer of the following details, in order to get an accurate solution recommendation and quotation:
1, the required water production:
2, raw water source:
3, water quality requirements:
4, pretreatment filter tank and pipeline material requirements?
5. Is there any water storage facility?
6. Use site power supply:

If the requirements cannot be accurately described, please contact us directly. We will provide you with a complete plan and quotation according to your needs.

Product Name	Function
Raw Water Pump	Provide needed pressure for every pre-treatment filter.
Sand Filter	Remove the water contains sediment, manganese, rust, colloid material, and other particles.
Activated Carbon Filter	Remove the pigment,smell,organisms, reducing the residual value of water
Water Softener (Optional)	Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter	Remove 5 micro particles
High Pressure Pump	Provide needed pressure for RO system
RO Membrane	Remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator	Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
